SFFS Split Pressurized Flat Plate Solar Water Heaters

SFFS is a split pressurized solar heating system. The flat plate solar collector absorbs heat energy during daytime and,circulating pumps work under temperature difference control. At the same time, working fluid is heated fast when going through solar collector,then transfers heat energy to the water tank or heat exchanger.
  • SFFS

  • 200L,300L,500L,600L,800L,1000L

  • Flat plate solar collector,Stainless steel,Polyurethane

  • Using solar energy to make hot water

  • Passive cycle,Split pressurized system

  • 3 years

Availability:
Quantity:

1. Product Description

1.1 Overview

  • SFFS system is mainly used for central supply of domestic hot water and hot water supply for commercial buildings.
  • Depending on different capacities of the water tank, SFFS mainly includes 9 common used models, 200L,300L,500L,600L,800L and 1000L for different water requests.

1.2 Structure

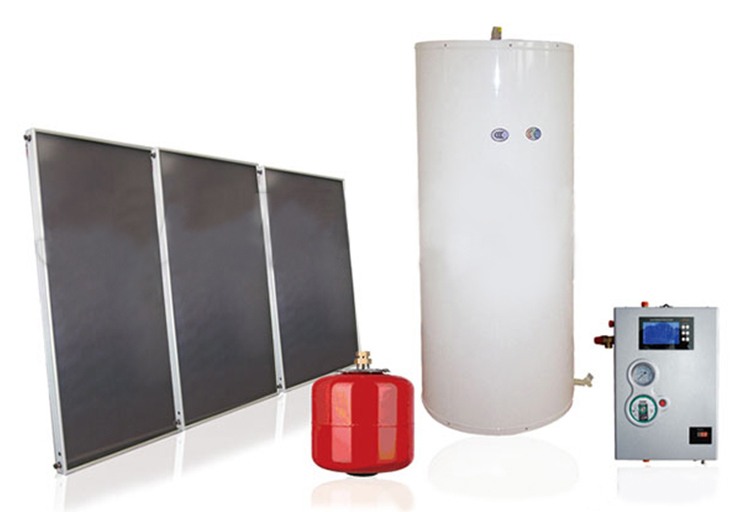

SFFS-p1.2


1.3 Working Principle

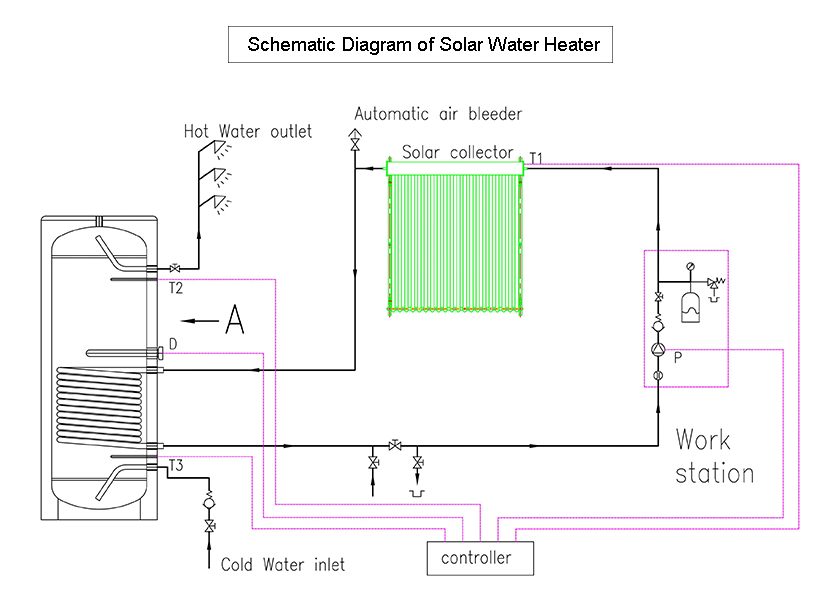

SFFS is a passive circulating split solar heating system. The flat plate solar collector absorbs heat energy during daytime and,circulating pumps work under temperature difference control. At the same time, working fluid is heated fast when going through solar collector, then transfers heat energy to the water tank or heat exchanger.


SFFS-p1.3


2. Features and Specifications

2.1 Characteristics

  • Split pressurized solar heating system has a architectural integration design.

  • Flat plate solar collector provides medium and high temperature hot water, suitable for use in various environments such as high temperature and hot areas.

  • Split pressurized water tank can work together with hot water equipment such as gas heater, boiler, electric heater, heat pump etc.

  • The intelligent design of the temperature difference cycle effectively reduces energy consumption.

  • Expansion vessel, PT valve, heat exchanger (copper coil),effectively protect the system safely and stably, and extend the service life.

2.2 Specifications

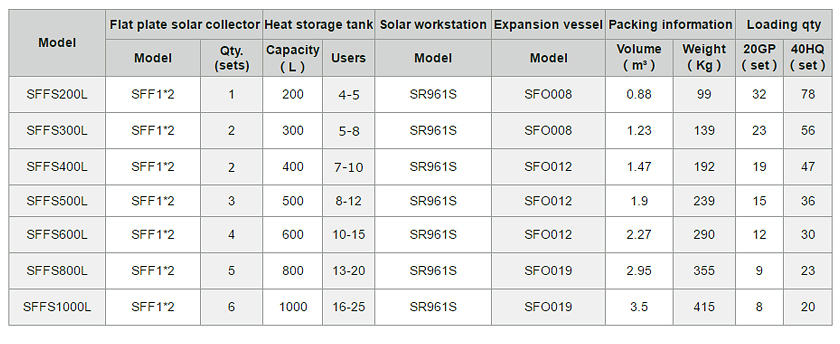

SFFS-p2.2

2.3 Optional Accessories

连接器

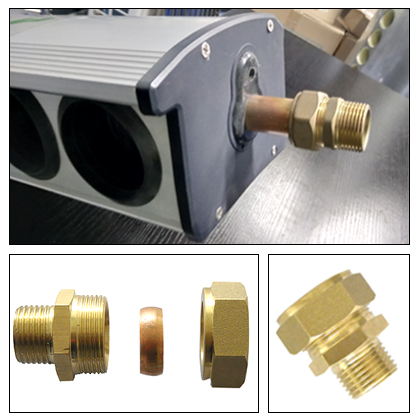

1.Ferrule Fitting Connection

Connecting pipeline.


Air Vent Valves-3

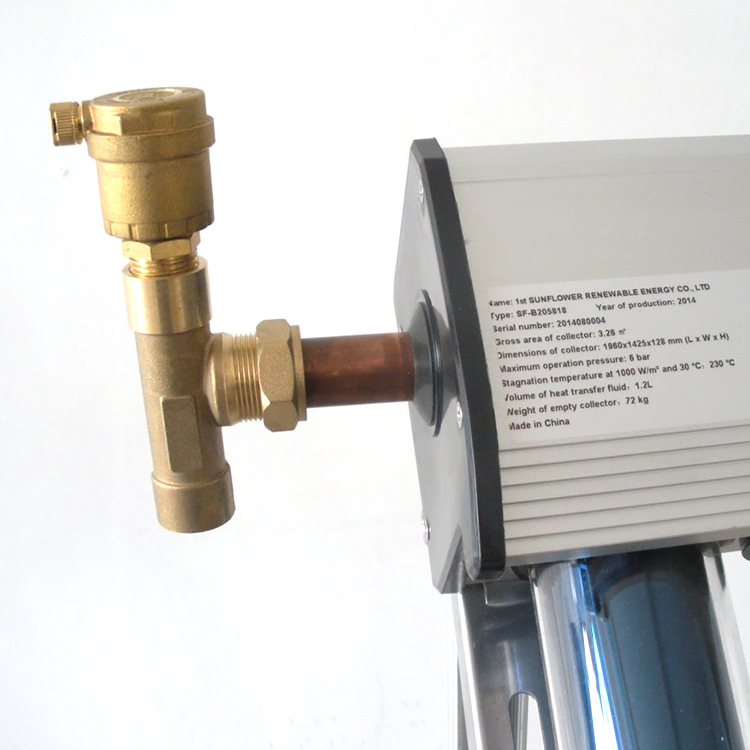

2.Air Vent Valve

Exclude the air inside the circulation pipeline.


Filter Valve-1

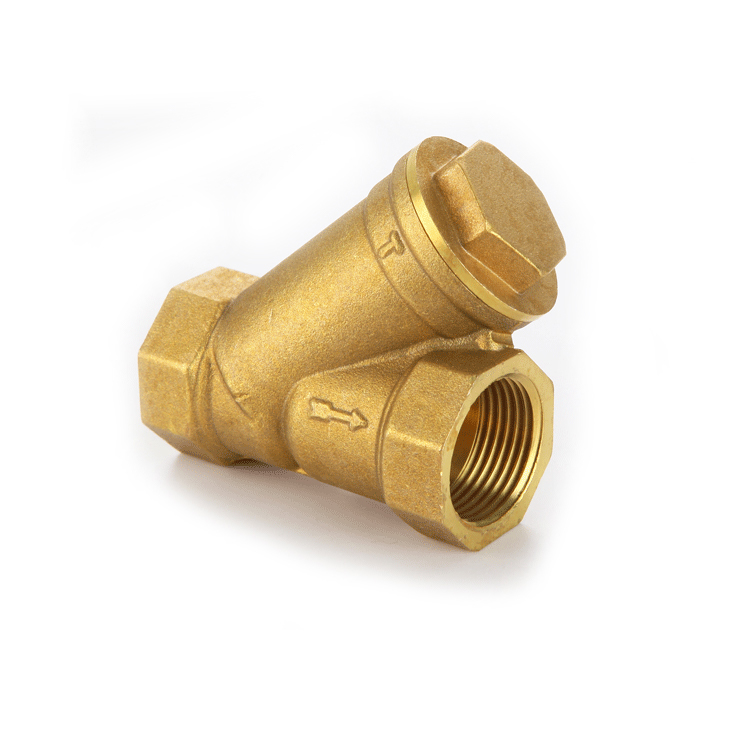

3.Filter Valve

Prevent any blockage in the pipeline.

Filling Valve -4

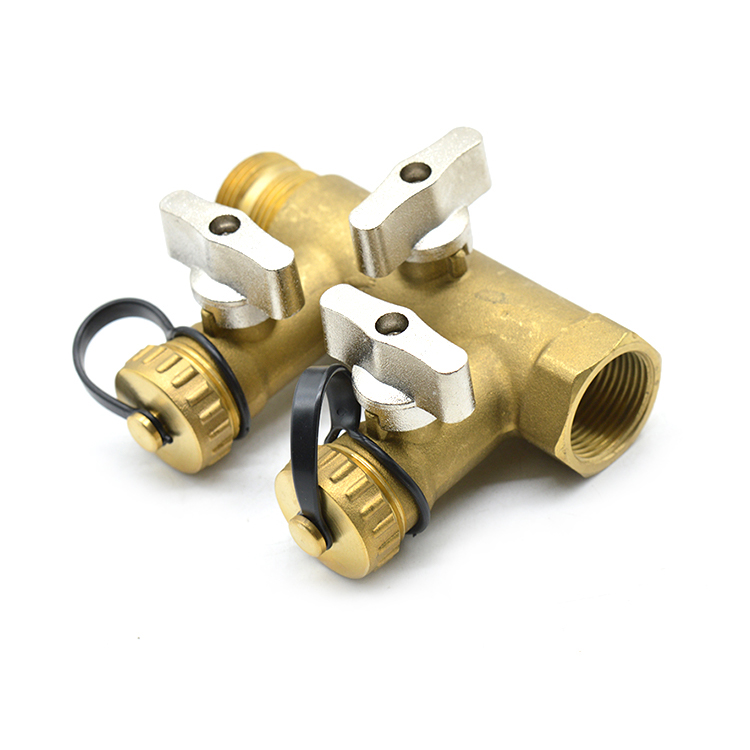

4.Filling Valve

Add working fluid into pipeline.


photobank (8)

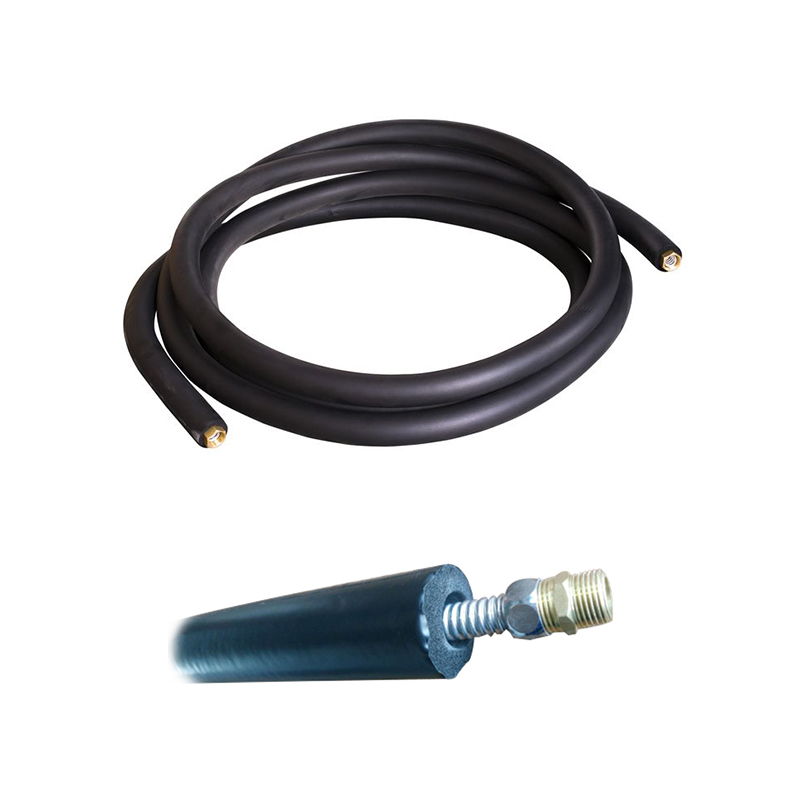

5.Pipeline

Pipe for connection.


Filling Pump-1

6.Manual Filling Pump

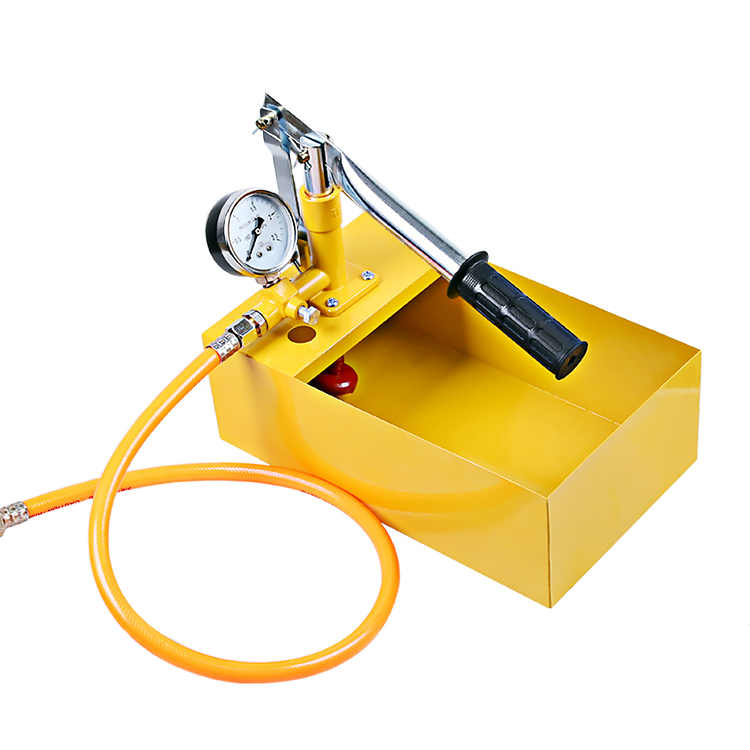

The pump helps add working fluid into pipeline.

电加热主图3

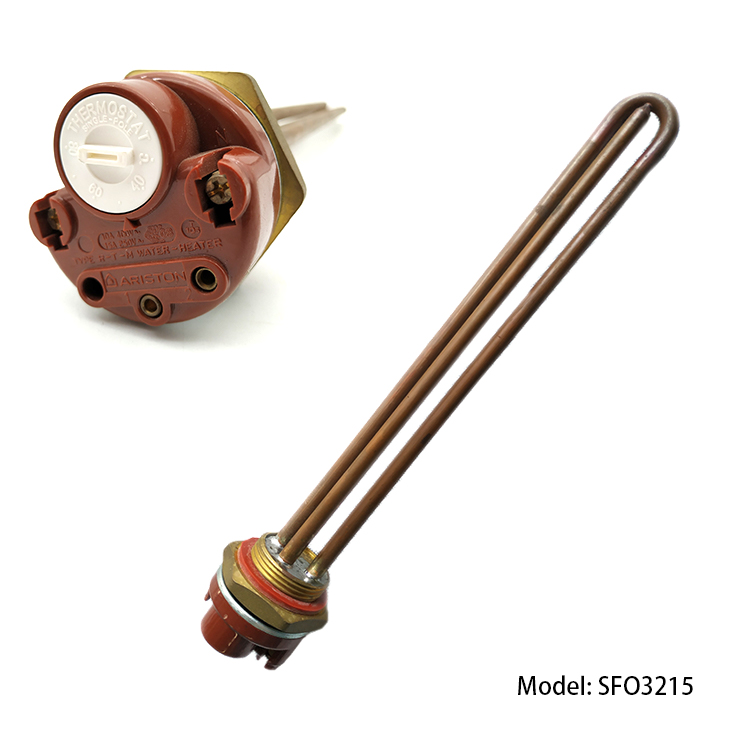

7.Electric Heating

Electric heating as an auxiliary power for backup.


SFO-M15

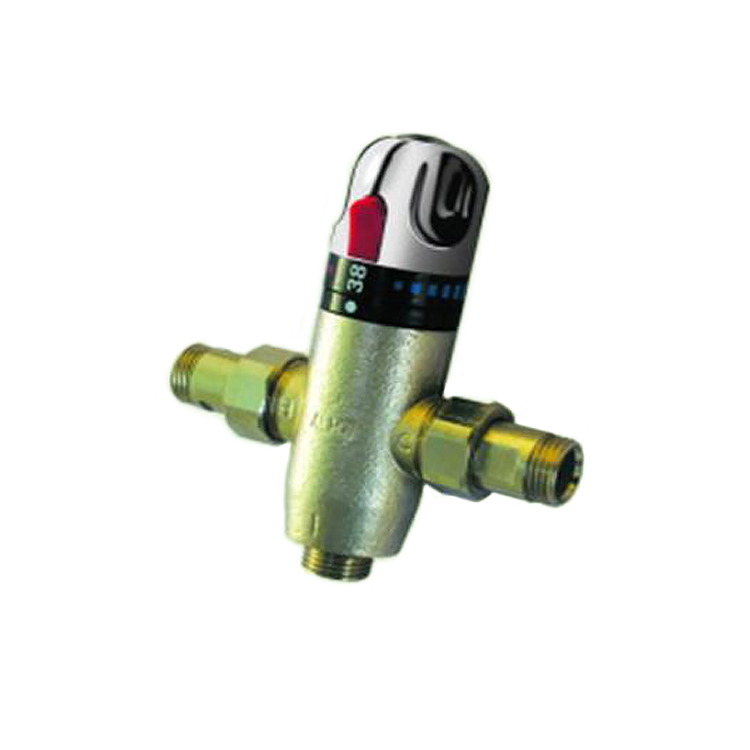

8.Mixed Thermostatic Valve

Automatically control the outlet temperature according to the setting.


减压阀主图1

9.Pressure Relief Valve

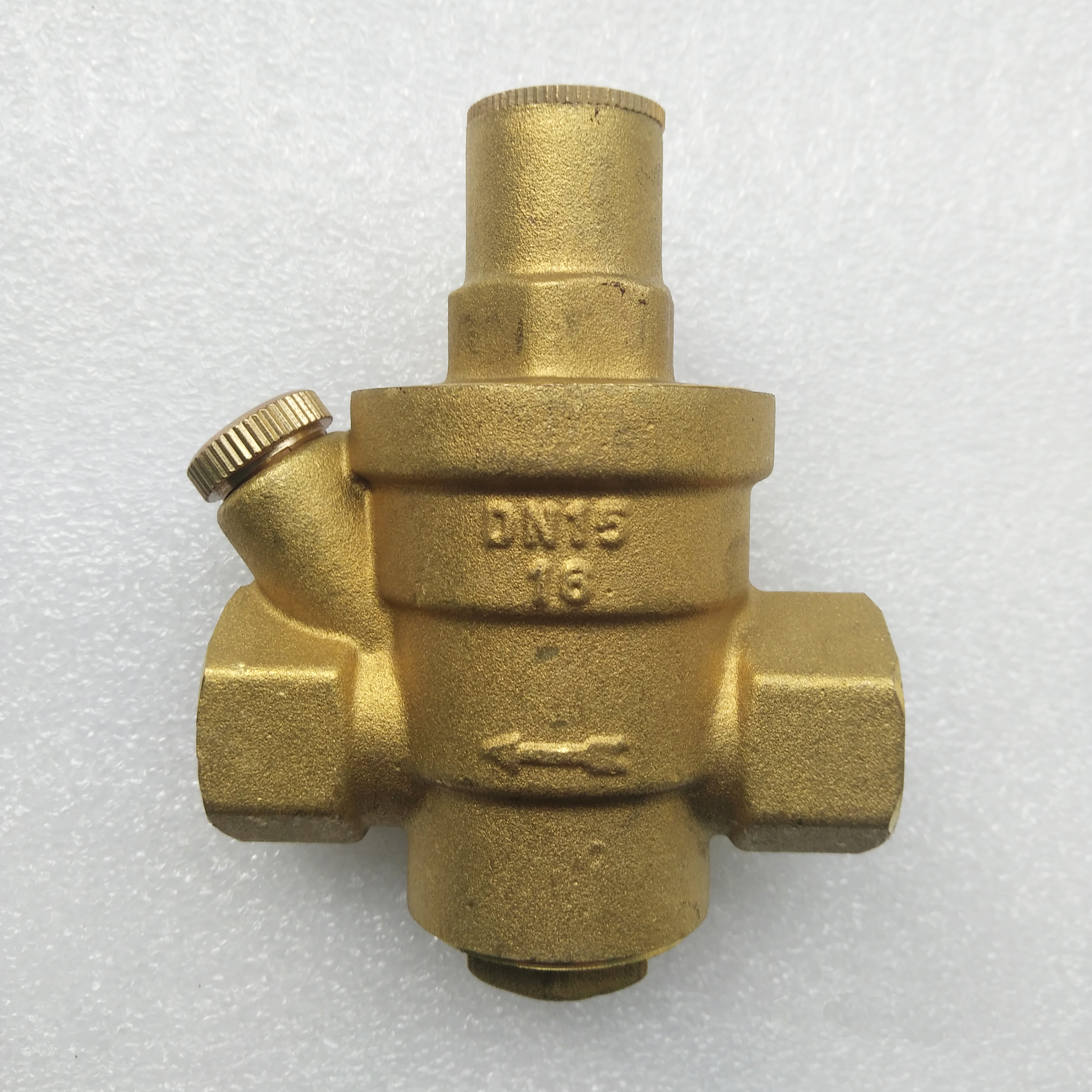

Regulate and stabilize pressure.


3. Installation and Cases

3.1 Installation

  • Flat plate solar collectors can be installed on the ground, on the flat roofs or inclined roofs where have efficient sunshine.The bracket needs to be fixedly connected with these bases.
  • Water tank is placed on the ground, preferably indoors.
  • Solar workstation is better to be mounted on a wall close to water tank.
  • Circulating pipe is preferably connected by metal pipe, like copper pipe or stainless steel bellows, and please pay attentin.

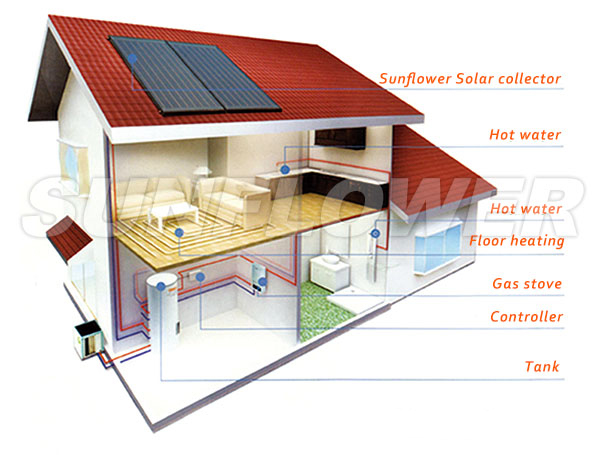

SFFS-p3.1

3.2 Cases

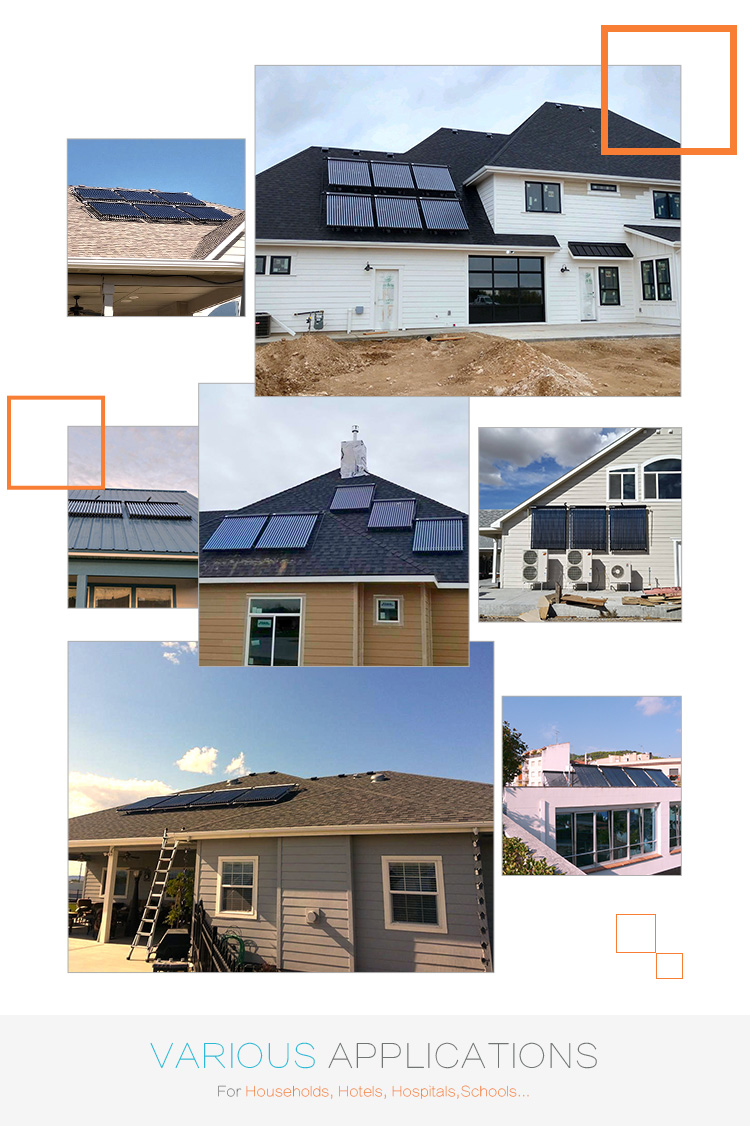

SFBS详情页3.2规格
