SFO-F Filter Valve

Filter valve is a device for pretreatment of filtration in a solar piping system.
  • SFO-F

  • For solar piping systems

  • Brass

  • Filter

  • Prevent blockage

  • 1 year

Availability:
Quantity:

1. Product Description

Y-type filter valve is a device for filtering pretreatment in a solar piping system, usually installed at the inlet end of circulating pumps, heat exchangers, pressure reducing valves, electric valves, solenoid valves and other equipment,used to eliminate impurities in the medium, prevent particulate impurities from entering the channel to protect the fittings on the equipment pipeline from wear and blockage. You just need to remove the filter cartridge when you clean it,then install it again, easy for use and maintainence.

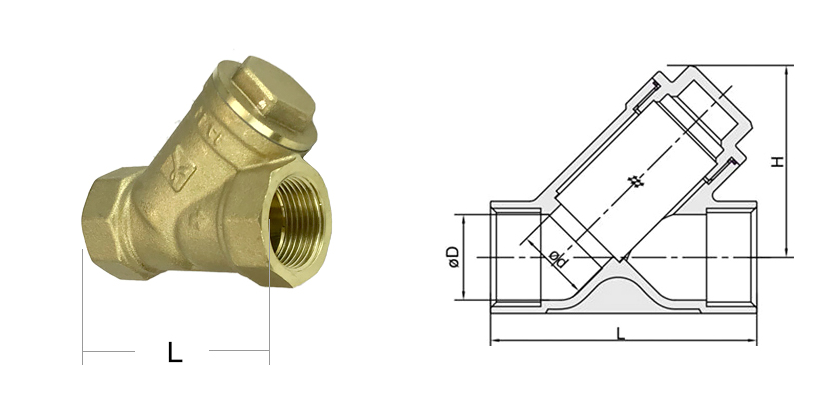

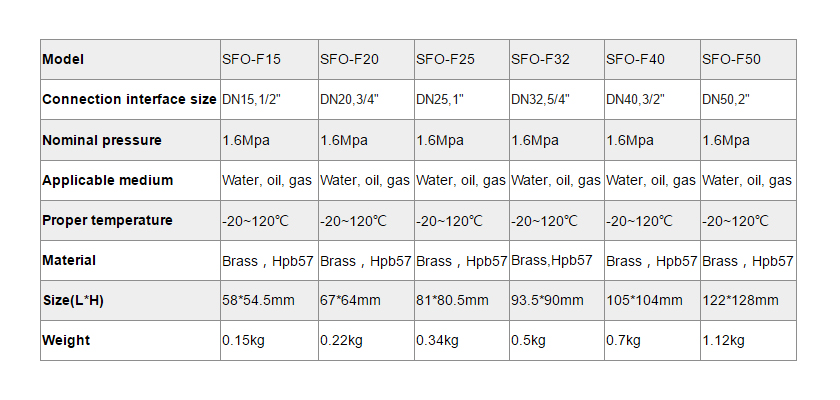

2. Technical Parameters

Filter Valve-Paragraph2-1


Automatic Air Vent Valves-paragraph 2

3. Technical Parameters

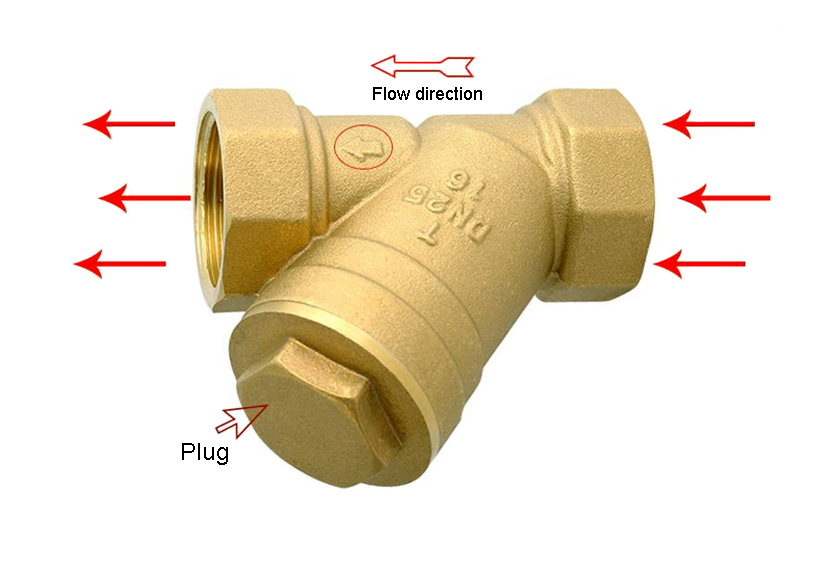

  • please check the direction of water flow under installation.
  • Plug facing down, is easy to clean up dirty things.
  • Please install it at the inlet of circulating pumps, heat exchangers, pressure reducing valves, electric valves, solenoid valves and other equipment.

Filter Valve-Paragraph3
