PUN-200E/PUN-600E Booster Pump For Hot Water Supply System

PUN200E/PUN600E hot water booster pump is for hot water supply of the solar central heating project, and automatically provides high pressure hot water to the user side
  • PUN-200E/PUN-600E
  • For hot water supply system
  • Cast iron
  • Automatic pressurization
  • Silent, safe, low energy, long life
  • 1 year
Quantity:

1. Product Description

  • PUN200E/PUN600E hot water booster pump is for hot water supply of the solar central heating project, and automatically provides high pressure hot water to the user side.
  • Germany wido, safe, no noise, low power consumption, long service life, high temperature resistance, fluid temperature 0 ~ 90 °C.
  • Booster pump consists of pump and water flow switch. When water tap is turned on, water flow switch is immediately activated to electricity power and then pump works to increase water pressure.

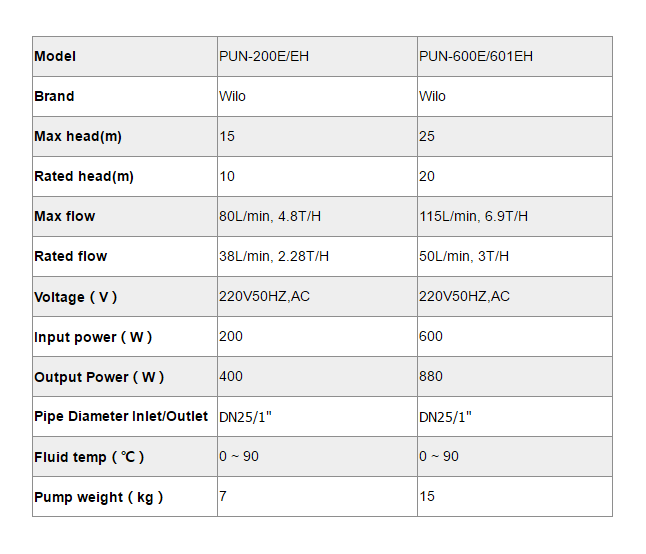

2. Technical Parameters

Booster Pump For Hot Water supply system-p2

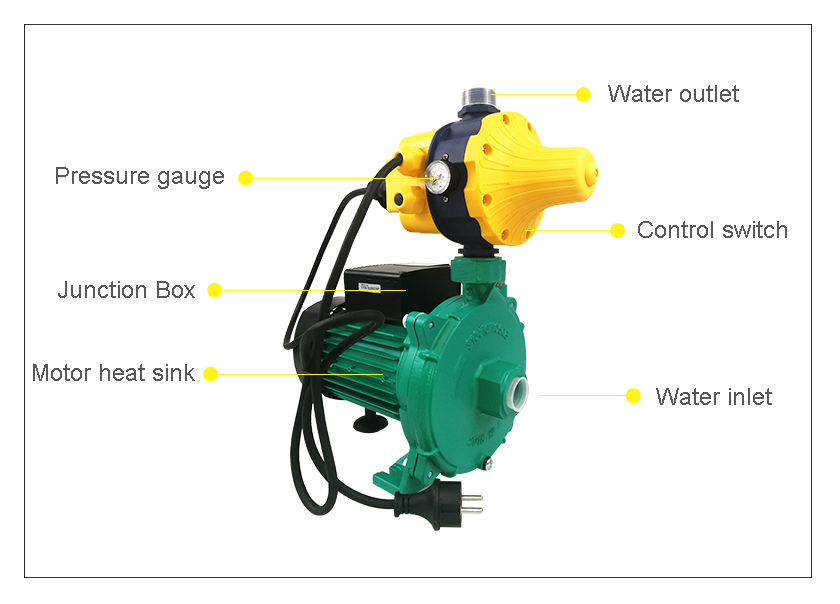

3. Structure

Booster Pump For Hot Water supply system-p3

4. Installation

  • The pump should be fixed to the ground and the shock-absorbing material can be added to the contact area.

  • The pump should be protected against rain and water immersion.

  • A check valve should be installed at the water outlet of the pump to prevent backflow, which cause pump to reverse.

  • A filter valve should be installed at the water inlet of the pump to prevent the pump body from being blocked.
