RS15/6 Solar Heating System Hot Water Circulation Pump

RS series hot water circulation pump is used in solar system for domestic hot water and floor heating
  • RS15/6,RS25/6,RS25/8

  • For household solar heating system

  • Cast iron

  • Hot water circulation

  • No noise, safe, low consumption, long service life

  • 1 year

Availability:
Quantity:

1. Product Description

  • RS series hot water circulation pump is used in solar system for domestic hot water and floor heating,to transport the heat collected by the solar collector (or water tank) to the water tank, heat exchanger or floor.

  • Germany Wilo,no noise, safe, low consumption, long service life. high temperature resistance,fluid max temperature:100℃.

  • Three kinds of speed levels for your choice.

  • Shielded water pump, no noise, keep quiet.

  • Special anti-corrosion treatment, anti-corrosion, no rust.

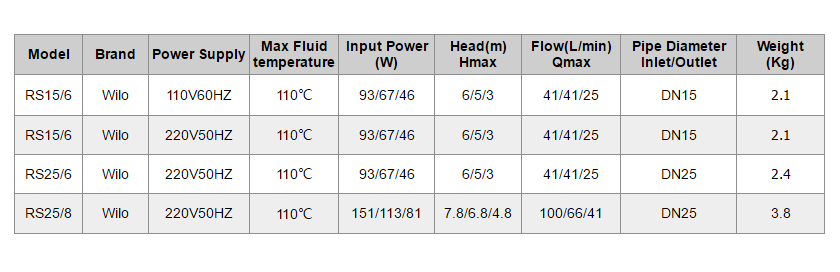

2. Technical Parameters

RS15 2

  • RS15/6 is also available in AC power 110V60HZ that meets the power requirements of the US, Canada, Latin America and other regions.

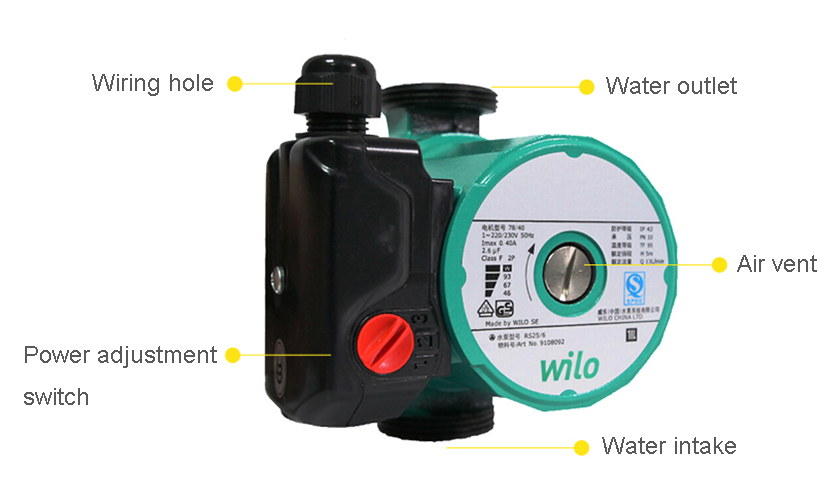

3. Structure

RS15 3

4. Installation

  • The pump should be fixed to the ground or pipeline and the shock-absorbing material can be added to the contact area.

  • The pump should be protected against rain and water immersion.

  • The pump should be well protected in winter months with insulation to prevent from freezing problem.

  • A check valve should be installed at the water outlet of the pump to prevent backflow, which cause pump to reverse.

  • A filter valve should be installed at the water inlet of the pump to prevent the pump body from being blocked.
