PH Solar Heating System Hot Water Circulation Pump

PH series hot water circulation pump is for large and medium solar heating projects with solar collectors in order to transfer the heat collected by the solar collector to the water tank or heat exchanger
  • PH101/PH123/PH253

  • for large and medium solar heating system

  • stainless steel + cast iron

  • hot water circulation

  • 1 year

Availability:
Quantity:

1. Product Description

  • PH series hot water circulation pump is for large and medium solar heating projects with solar collectors in order to transfer the heat collected by the solar collector to the water tank or heat exchanger.

  • Germany Wilo, no noise, safe, low consumption, long service life. high temperature resistance,fluid max temperature:100℃.

  • Good size of circulating pump for solar heaitng system can transfer heat in time and minimize power consumption while avoiding heat loss.


2. Calculation of circulation pump selection in solar energy system

2.1 In a solar heating system, it is extremely important to choose the right circulating pump model

  • The heat collected by the solar collector can be transferred to water tank or heat exchanger in time.

  • Low power consumption to reduce operating costs.

  • Control the pipeline pressure of the solar system at a reasonable level and extend the service life of solar collectors and other equipment.

2.2 Cyclic pump selection calculation

The size of solar energy circulation pump mainly involves the calculation of two factors,flow and head.


2.2.1 Flow

  • In a closed solar cycle system, Q=0.02*3.6*A.

  • In an open solar cycle system, Q=0.015*3.6*A.

Among which,A: Solar collector area.


2.2.2 Head

  • In a closed solar cycle system, because the pressure in the closed pipe is equal, the head can be ignored.

  • In an open solar cycle system, H=1.1ΔH.

Among which, ΔH: The difference between the highest point and the lowest point of the pipe.


2.2.3 Other factors

Solar circulation pump selection is a complex calculation, in addition to calculating the head and flow, other factors such as
cirulation pipeline loss should also be calculated comprehensively.
  • Length and pipe diameter of the circulating pipeline

  • Alignment and layout of the circulating pipeline

  • Sunshine exposure

  • Type of heat exchanger

  • Temperature requirement at the end of use

3. Technical Parameters

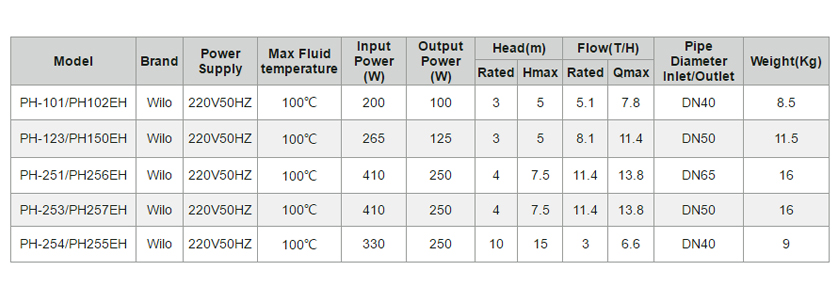

hot water circulation pump-p3.1

hot water circulation pump-p3.2

4. Structure

hot water circulation pump-p4

5. Installation

  • The pump should be fixed to the ground or pipeline and the shock-absorbing material can be added to the contact area.

  • The pump should be protected against rain and water immersion.

  • The pump should be well protected in winter months with insulation to prevent from freezing problem.

  • A check valve should be installed at the water outlet of the pump to prevent backflow, which cause pump to reverse.

  • A filter valve should be installed at the water inlet of the pump to prevent the pump body from being blocked.
