SFO Plate Heat Exchanger For Solar Water Heating System

SFO flat plate heat exchanger is to tranfer heat energy that solar collectors absorb to water tank
  • SFO

  • Heat exchange system

  • SUS316L+red copper

  • Heat exchange

  • Small size and fast heat exchange

  • 1 year

Availability:
Quantity:

1. Product Description

  • SFO flat plate heat exchanger is to tranfer heat energy that solar collectors absorb to water tank.

  • Its material is SUS316L, which is brazed under vacuum high temperature.

  • Efficient heat transfer, high pressure and corrosion resistance, easy to install.

  • Good sealing performance, no any mix under heat exchanger.

  • A good size of heat exchanger can transfer heat energy in time and avoid heat loss.


2. Design of heat exchange in solar energy systems

It is a complex calculation process to choose a good size of  heat exchanger in a solar heating system and following factors should be in consideration.
  • Flow on both sides.

  • Temperature and temperature drop on both sides.

  • Pressure drop.

  • Specific heat, viscosity and thermal conductivity of fluid.

  • Temperature requirement at user side.

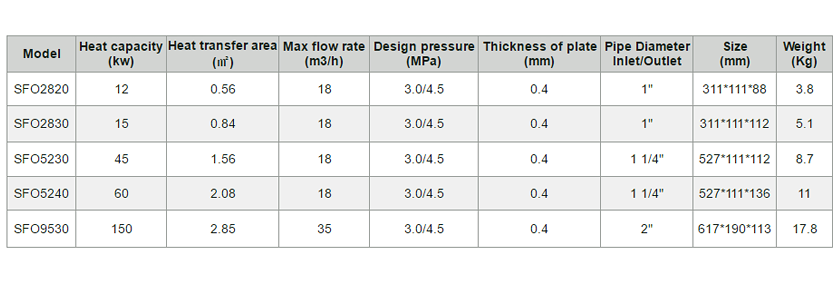

3. Technical Parameters

Plate Heat Exchanger-p3

4. Installation

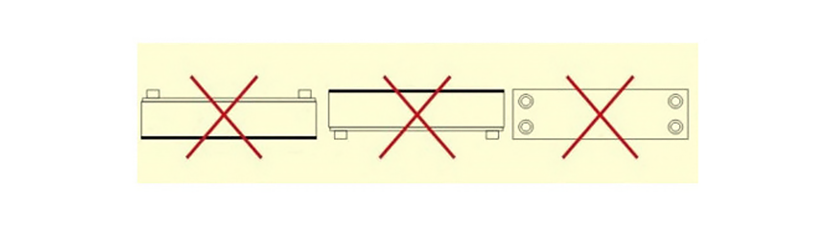

  • Installation should be upright, not lateral  to achieve efficient heat transfer.

Plate Heat Exchanger-p4-1

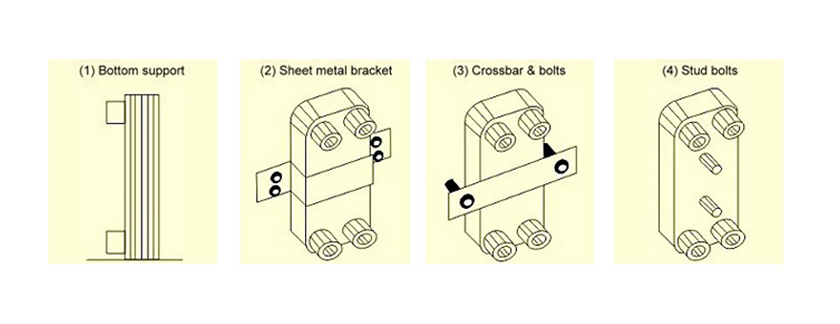

  • Fixing measures must be taken after installation.

Plate Heat Exchanger-p4-2

  • A filter valve should be installed at the water inlet to prevent blockage.

Plate Heat Exchanger-p4-3
