SFO-FV Filling Valve For Pumping Station

Four-way filling valve for pumping station,it is used to inject the working fluid in the circulating pipe of the split pressurized solar water heater.
  • SFO-FV15/SFO-FV20

  • For split pressure solar water heater

  • Brass

  • Prime circulating

  • Working fluid

  • 1 year

Availability:
Quantity:

1. Product Description

Four-way filling valve for pumping station,it is used to inject the working fluid in the circulating pipe of the split pressurized solar water heater.

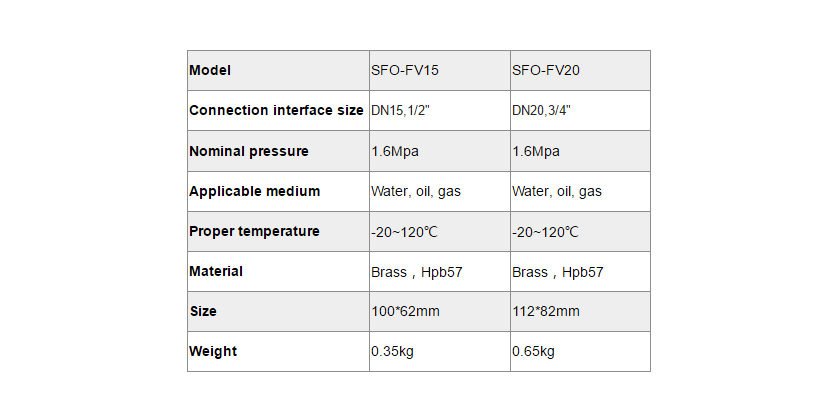

2. Technical Parameters

SFO-FV Filling Valve For Pumping Station-SFO-FV20-Paragraph 2

3. Technical Parameters

Firstly, install the filling valve to the solar system.

SFO-FV Filling Valve For Pumping Station-SFO-FV20-Paragraph 3-1

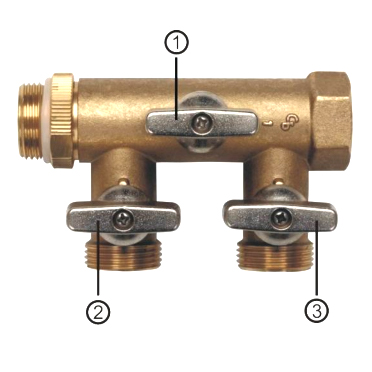

When filling the medium, close the button ①, and open the button ② ③ at the same time. Fill the medium from the left side. When there is medium venting from the right side evenly, it means the medium has been filled up. Then close the button ② ③, and open the button ① .

SFO-FV Filling Valve For Pumping Station-SFO-FV20-Paragraph 3-2

Note: For button ①, in the lateral direction means it is on open statue,
while in the vertical direction means on close statue.
For button ② and ③, in the lateral direction means on close statue,
while in the vertical direction means on open statue.
