SR21L/SR11L EPP Solar Work Station & Pump Stations

SR11L/SR21L EPP solar workstation is used in a split pressurized solar water heater system.
  • SR21L_SR258/SR21L_SR228 SR11L_SR258/SR11L_SR228
  • Applicable to SFBS/SFFS
  • EPP housing, brass fittings, integrated circuit
  • Control solar heating system intelligently
  • Suitable for split pressurized solar water heaters
  • 1 year
Quantity:

1. Product Description

1.1 Overview

  • SR11L/SR21L EPP solar workstation is used in a split pressurized solar water heater system.
  • It can be combined with the SR258/SR288 controller.
  • It combines flow control, heat cycle, exhaust, pressure control, temperature display, system injection/discharge and many other functions into one.
  • By connecting solar collectors and split pressurized water tanks, store solar energy in the water tank.It can monitor system temperature, pressure, flow, etc. at any time.The structure of the entire assembly is compact, easy to install and use, good insulation effect.

1.1.1 Product picture

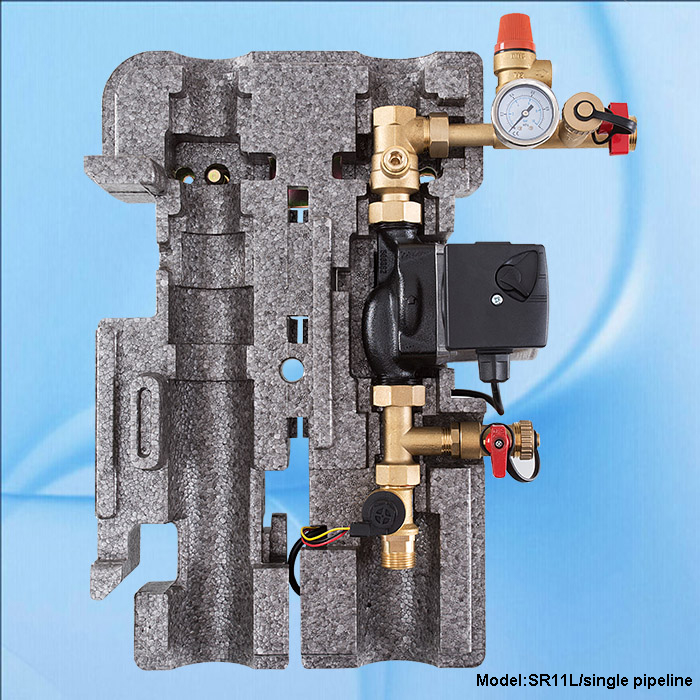

SR21LSR11L EPP Solar Work Station & Pump Stations-p1.1.1


1.1.2 Kits Parameter

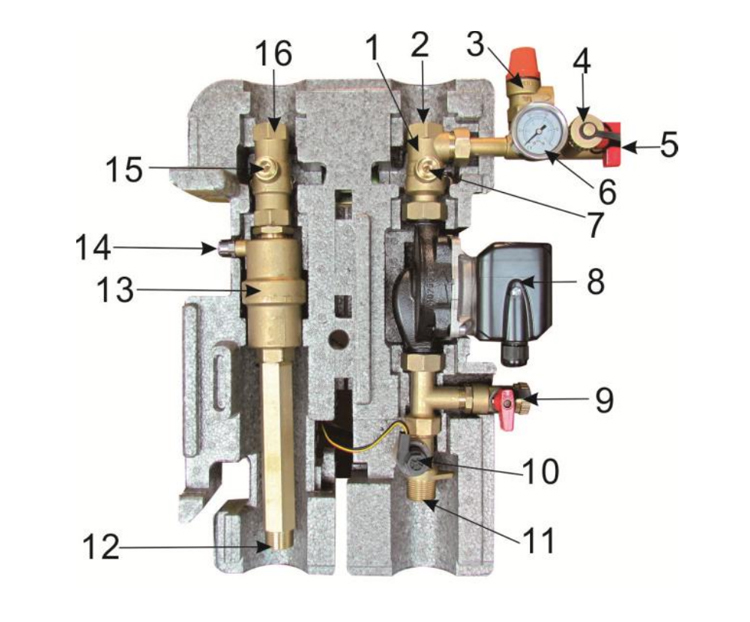

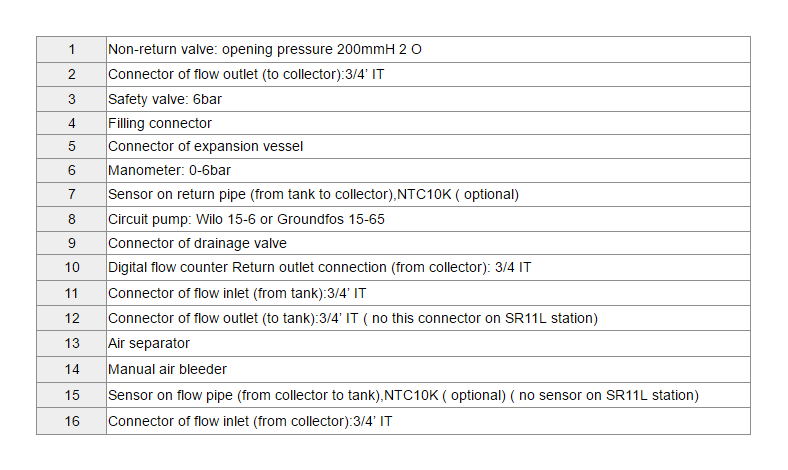

SR21LSR11L EPP Solar Work Station & Pump Stations-p1.1.2


1.2 Main functions

1.2.1 Flushing and filling the solar system

Flushing and filling connector is already integrated in the solar station, and we still recommend installing a filling and drainage valve horizontally at the lowest point of the solar circuit for flushing system.


1.2.2 Flow check

The flow counter is used for measurement and display of flow rate 1-20L/M, in order to guarantee the flawless function of the measuring device the system must be flushed and free from foreign substances.


1.2.3 Manual / Automatic integrative air bleeder

After filling solar liquid and commissioning the system, air bleeder will release air automatically, but you can also release air manually.


1.2.4  Electrical connection and operation instruction of controller (see manual of controller)

The controller is already integrated in the station and ready to plug in, display and digital counter are already preinstalled at factory. For maintenance or service work, it needs to take out the controller from station. For further information on electrical connection of the controller, please see manual of controller (terminal layout).


1.3 Delivery scope

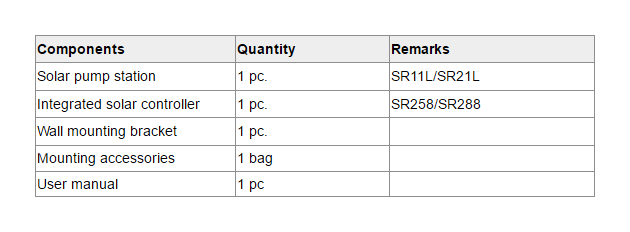

SR21LSR11L EPP Solar Work Station & Pump Stations-p1.3


2. Technical Parameters

2.1 Technical Parameters

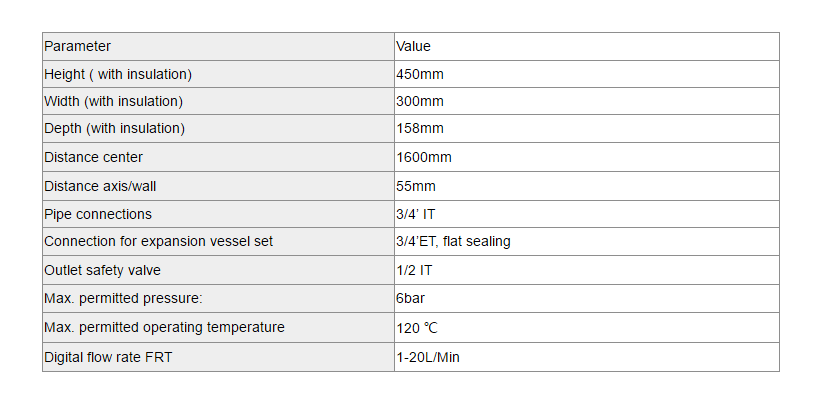

SR21LSR11L EPP Solar Work Station & Pump Stations-p2.1

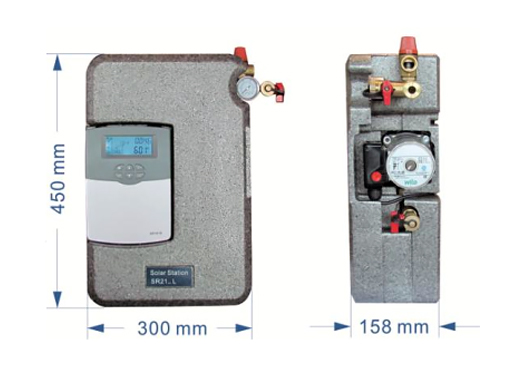

2.2 Size

Product:450*300*158mm

Package:500*400*200mm

SR11L:7KGSR21L

SR21LSR11L EPP Solar Work Station & Pump Stations-p2.2


2.3 Optional controllers for pump station

  • SR11L/SR21L can be used with SR258/SR288 and other controllers.SR258/SR288 solar water heater intelligent controller is uesd for split pressure solar water heater.

  • Developed with the latest high-performance microcontroller from NXP, the Netherlands,thereby achieving intelligent control.

  • All devices use industrial grade standards,which can operate freely in cold, high temperature and humid environments.

  • Simultaneous use of the clock chip for precise timing control.

  • SR11L/ SR21L is LCD liquid crystal display, beautiful appearance, stable and reliable performance, easy installation, become the most ideal accessory product for solar water heaters.


2.3.1 SR258 controller


SR258 Solar Controllers for Split Pressurized Solar Water Heater-1


2.3.2 SR288 controller

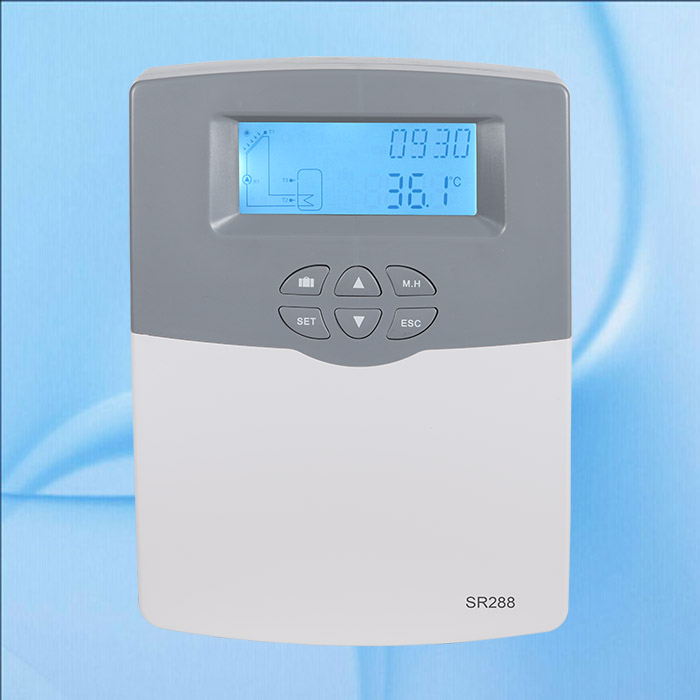

SR288 Solar Controllers for Split Pressurized Solar Water Heater-1

3. Product installation

3.1 SR11L/SR21L installation diagram


SR11L

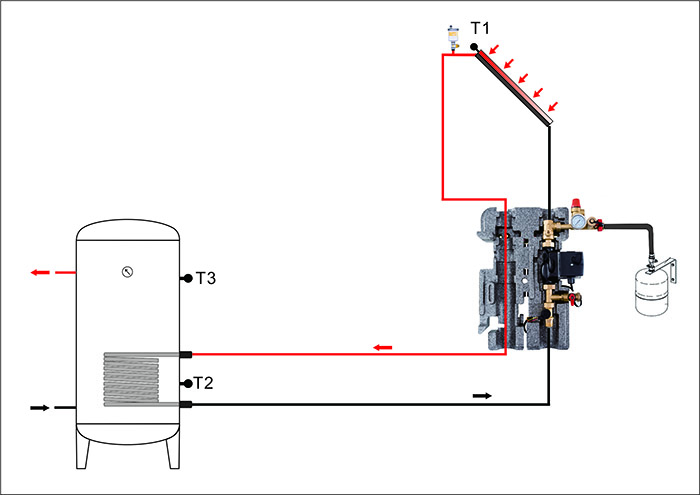

SR21LSR11L EPP Solar Work Station & Pump Stations-p3.1-1


SR21L

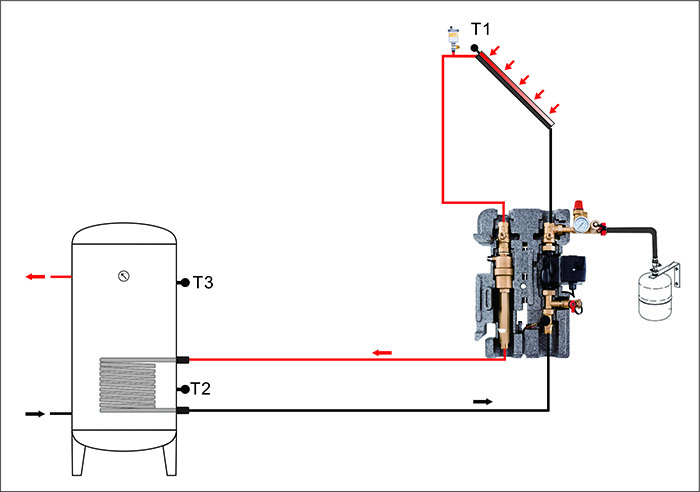

SR21LSR11L EPP Solar Work Station & Pump Stations-p3.1-2


3.2 SR11L/SR21L installation manual download:

Operation Instruction SR11L/SR21L
