SR530F8 Solar Controllers for Projects of Solar Collector

SR530F8 solar controller is used in large and medium-sized solar heating projects.

Model:
SR530F8
Specification:
Applicable to SFBS/SFFS/SFES
Material:
Integrated circuit
Function:
Intelligent control solar heating system
Features:
Suitable for large and medium-sized solar water heating projects
Warranty :
1 year

Availability:

Quantity:



Inquire Add to Basket

1. Product Description

1.1 Overview

SR530F8 Solar Controller for large and medium solar water heater systems with fucntions of controlling solar circuit pump, storage loading pump, backup heating equipment, and show temperature and water level on screen.

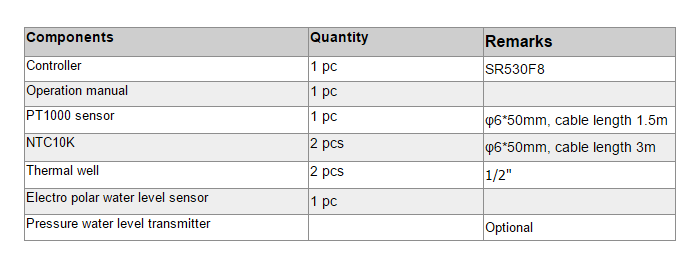

Solar Controllers for Projects of Solar Collector-p1.2

2. Technical Parameters

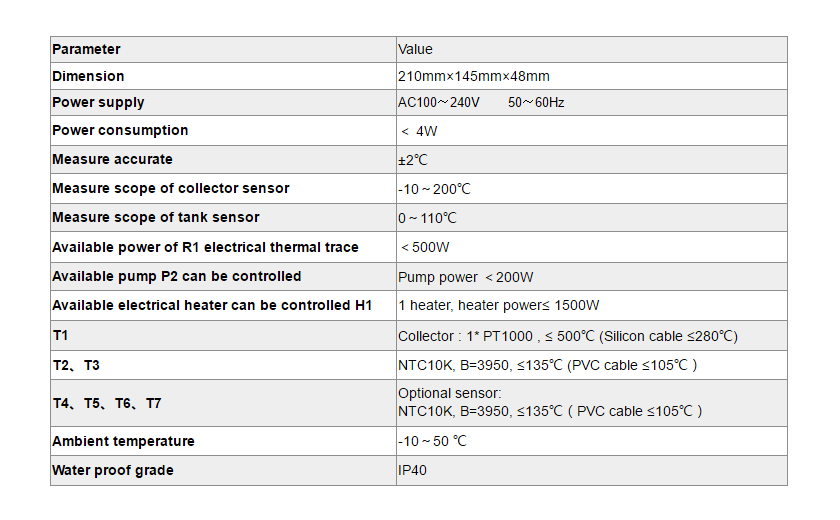

2.1 Technical Parameters

Solar Controllers for Projects of Solar Collector-p2.1

2.2 Optional accessories

2.2.1 Electromagnetic relay : SR802,can control electric heating of ≤4000W.

Contactor unit of high power: SR802

When user selects electrical heater as back-up device, we recommend using SR802 unit connecting controller and electrical heater.

Technical data of SR802 Dimension: 100mmx100mmx65mm

Power supply:180V～264V/AC 50/60Hz

Suitable power: ≤ 4000W

Available ambient temperature: -10 ~ 50oC Water proof grade: IP43

SR802 Connection Diagram:

SR802安装示意图

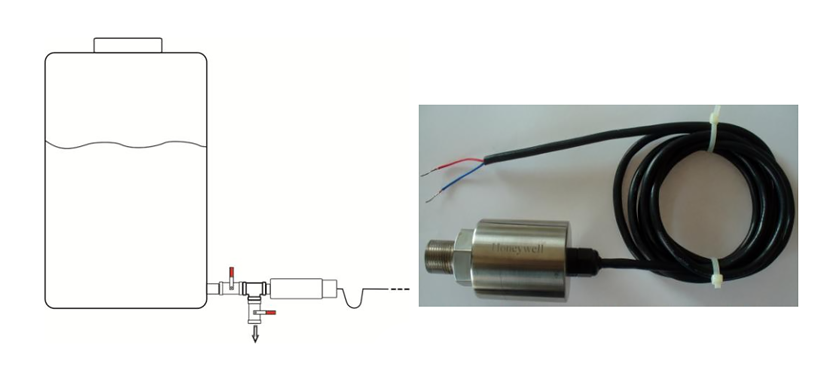

2.2.2 pressure transmitter

Solar Controllers for Projects of Solar Collector-p2.2.2

3. Product installation

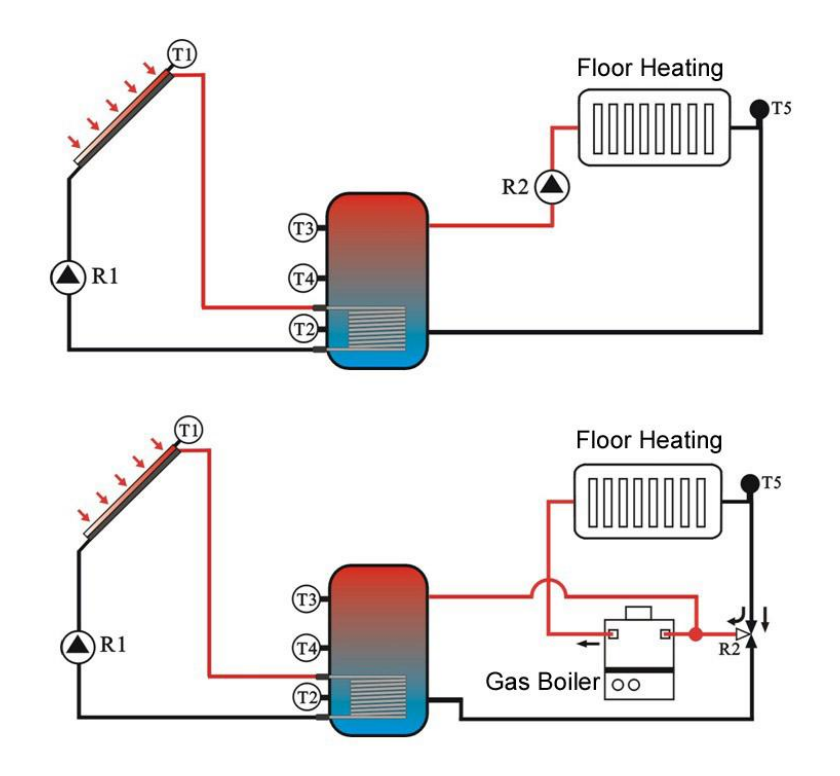

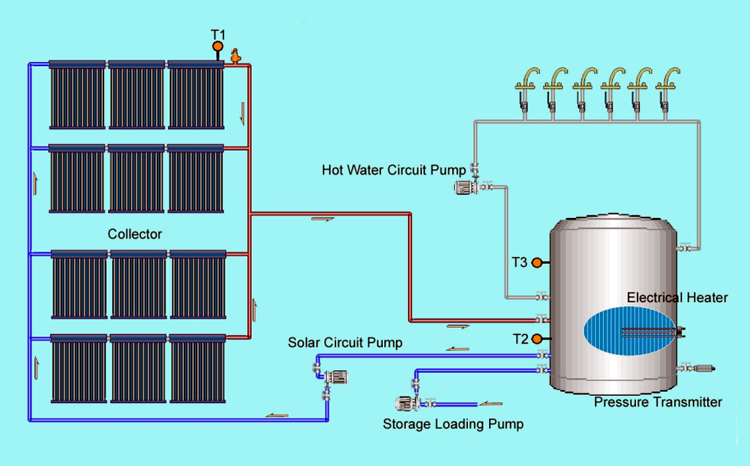

3.1 SR530F8 Installation diagram

Solar Controllers for Projects of Solar Collector-p3-1

Solar Controllers for Projects of Solar Collector-p3-2

3.2 SR530F8 Installation manual download link:

SR530F8-EN-20180418.pdf

Solar Controllers for Projects of Solar Collector Suitable for large and medium-sized solar water heating projects Intelligent control solar heating system
