SR11H/SR21H EPP Solar Work Station & Pump Stations

SR11H/SR21H EPP solar workstation is used in a split pressurized solar water heater system.
  • SR11H_SR658/SR11H_SR1568 SR21H_SR658/SR21H_SR1568
  • Applicable to SFBS/SFFS
  • EPP housing, brass fittings, integrated circuit
  • Control of solar heating system intelligently
  • Suitable for split pressurized solar water heaters
  • 1 year
Quantity:

1. Product Description

1.1 Overview

  • SR11H/SR21H EPP solar workstation is used in a split pressurized solar water heater system.

  • It can be used in combination with SR658/SR1568.

  • It combines versatility into one,such as flow control, heat cycle, exhaust, pressure control, temperature display, system injection / drain.

  • By connecting solar collectors and split pressurized water tanks,store solar energy in a water tank.It can monitor system temperature, pressure, flow and other conditions at any time. The whole set of components is compact in structure, easy to install and use, high temperature resistant and good heat preservation effect.

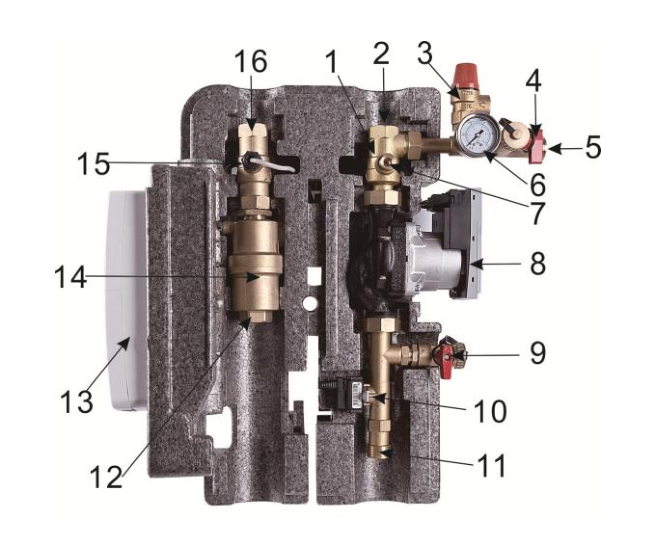

1.1.1 Product picture

SR11HSR21H EPP Solar Work Station & Pump Stations-p1.1.1

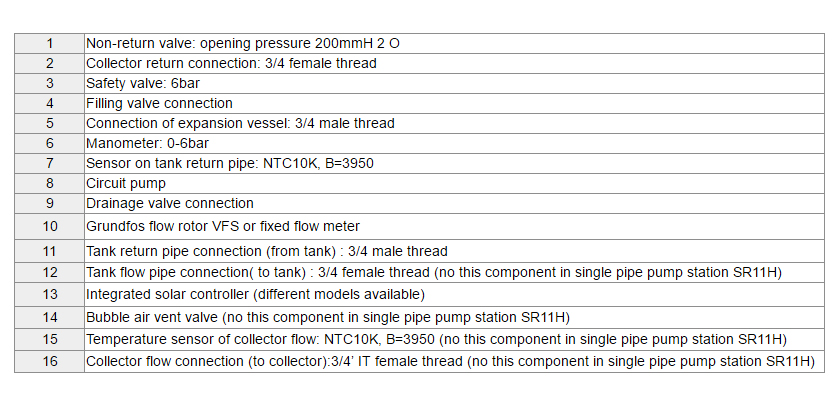

1.1.2 Kits Parameter

SR11HSR21H EPP Solar Work Station & Pump Stations-p1.1.2


1.2 Main functions


1.2.1 Flushing and filling the solar system

Flushing and filling unit is already integrated in the solar pump station, but we still recommend installing flushing and filling ball valve at the lowest point of the solar circuit in order to drain off the scales.


1.2.2 Flow check

The flow counter is used for measurement and display of flow rate, in order to guarantee the flawless function of the measuring device the system must be flushed and free from foreign substances.


1.2.3 Manual / Automatic integrative air bleeder

After system is filled and commissioned, air vent will automatically release the air of system, but you can also release the air manually.


1.2.4  Electrical connection and operation instruction of controller (see manual of controller)

The controller is already integrated in the station and ready to plug in, display and digital counter are already preinstalled at factory. For maintenance or service work, it needs to take out the controller from station. For further information on electrical connection of the controller, please see manual of controller (terminal layout)

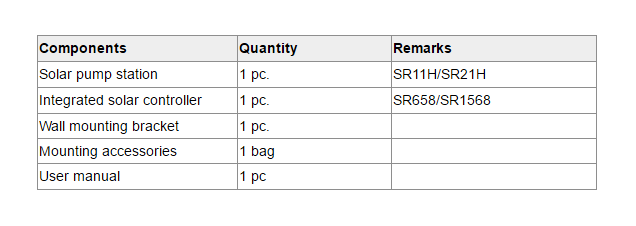

1.3 Delivery scope

SR11HSR21H EPP Solar Work Station & Pump Stations-p1.3

2. Technical Parameters

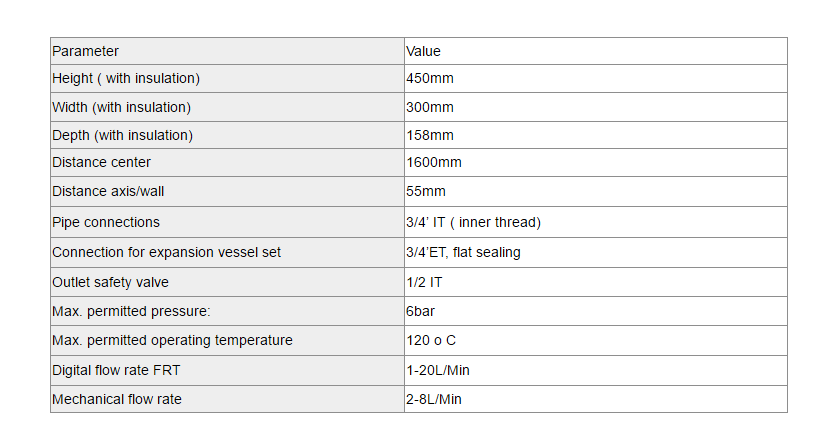

2.1 Technical Parameters

SR11HSR21H EPP Solar Work Station & Pump Stations-p2.1

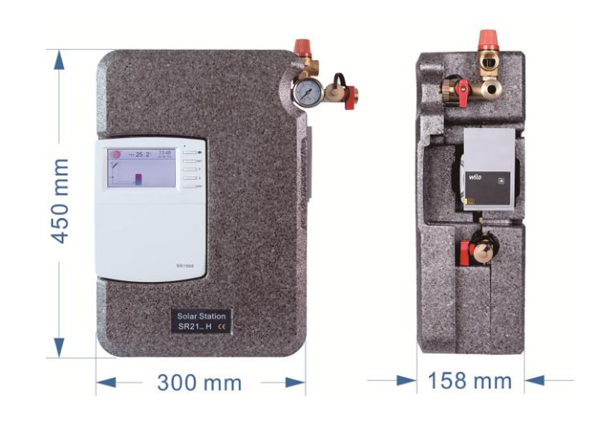

2.2 Size

Product:450*300*158mm
Package:500*400*200mm
SR11L:7KG
SR21L:8.6KG

SR11HSR21H EPP Solar Work Station & Pump Stations-p2.2

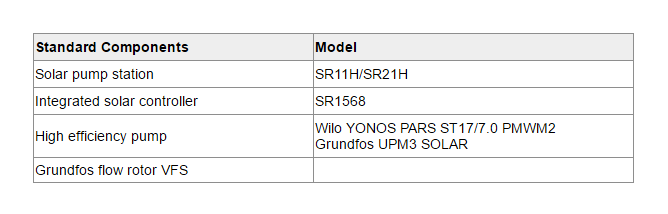

2.3 Stardard components of pump station SR11H singel / SR21H double series

SR11HSR21H EPP Solar Work Station & Pump Stations-p2.3

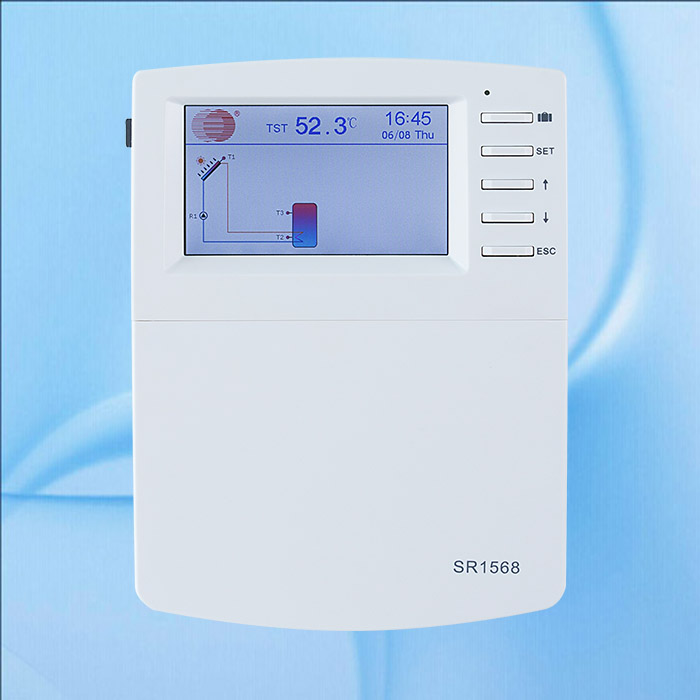

2.3.1 SR1568 controller


SR1568 Solar Controllers for Split solar water heater-1


2.4 Optional Accessories

2.4.1 SR658 controller.


SR658-1


2.4.2 Convention Pump: Wilo: RS15-6 or ST-ECO15-6 Grundfos: SOLAR15-65.

2.4.3 Germany AFRISO fixed flowmeter.

2.4.4 Digital flow counter: SR658 has RFT connector and SR1568 has no RFT connector.



3. Product installation

3.1 SR11L/SR21L installation diagram

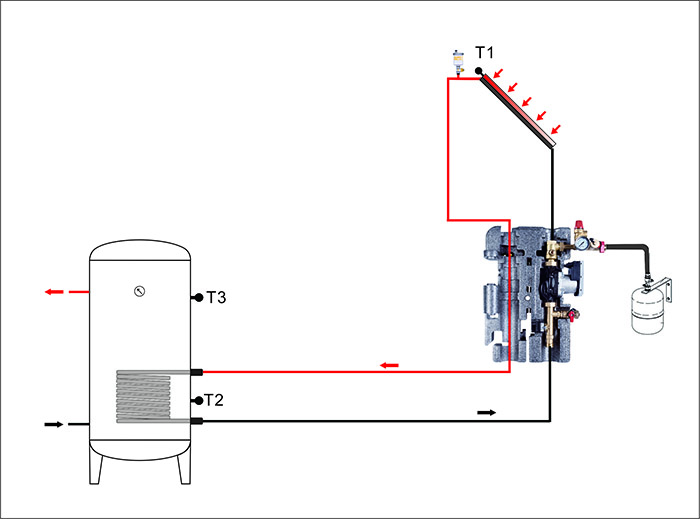

SR11H (Single pipeline)


SR11HSR21H EPP Solar Work Station & Pump Stations-p3.1-1

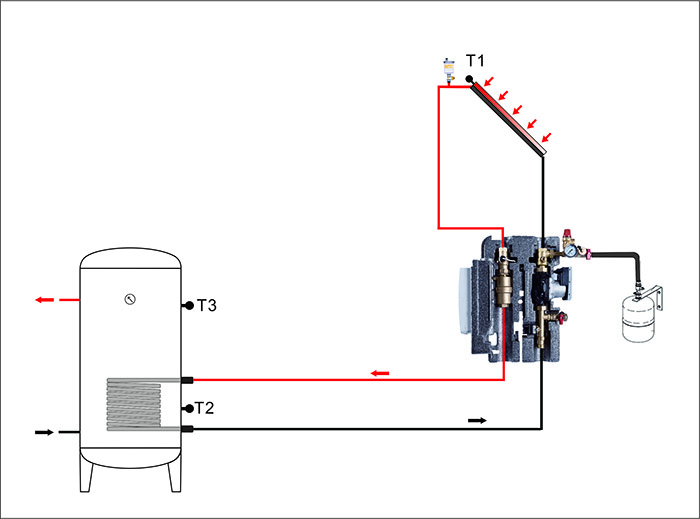

SR21H (Double pipeline)


SR11HSR21H EPP Solar Work Station & Pump Stations-p3.1-2


3.2 SR11H/SR21H installation manual download:

manual of solar hot water pump station SR11H,SR21H series.
