SFO-PR15 Water Pressure Rregulator valve

SFO-PR15 Water Pressure Rregulator valve acts to keep the system pressure stable and depressurized, which can avoid the influence of unstable water supply pressure on the solar hot water system.
  • SFO-PR15

  • for SFH/SFBS/SFD/SFFP

  • copper

  • Reduce pressure,Stable pressure

  • Adjustable pressure

  • 1 year

Availability:
Quantity:

1. Product Description

  • SFO-PR15 Water Pressure Rregulator valve acts to keep the system pressure stable and depressurized, which can avoid the influence of unstable water supply pressure on the solar hot water system.
  • By maintaining pressure stability, the life of the solar water heating system can be extended.

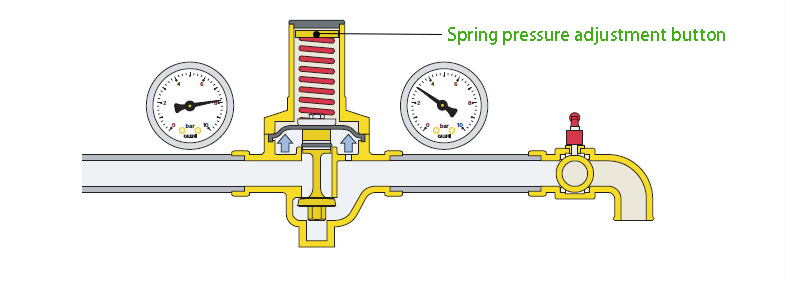

2. Working principle

SFO-PR15 Water Pressure Rregulator valve is a valve that adjusts the inlet pressure to a certain required outlet pressure and relies on the energy of the medium itself to automatically maintain the outlet pressure.


减压阀详情页2

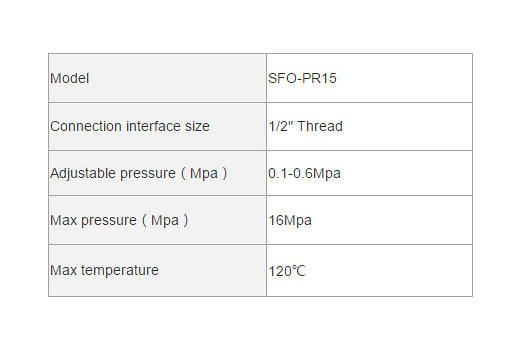

3. Technical Parameters

减压阀详情页规格表

4. Product installation

  • We recommend installing a filter valve at the inlet to prevent blockage.
  • A pressure gauge can be installed to display the pressure value.
  • Turn the adjustment clockwise to increase the hydraulic pressure.
    Turn the adjustment counterclockwise to reduce the hydraulic pressure.
