TKF(R)-ACDC
9000btu/1P;12000btu/1.5P;18000btu/2P:20000btu/2.5P:24000btu/3P
Solar PV,Solar AC
Converting solar energy into electricity for air conditioning work
ACDC, by solar energy or mains electricity
3 years
| Quantity: | |
|---|---|
1. Product Description
Wide ambient operating temperature range: -10°C to +58°C, meeting the needs of customers in most regions.
Saving energy by 80% to 100% in day time, at night saving 20% more because of high EER.
DC to DC, 0 convert loss, long life using
Easy installation, add plug and play Mc4 connection to outdoor compared with normal air conditioner.
Air conditioner run 100% DC when grip power cut in day time.

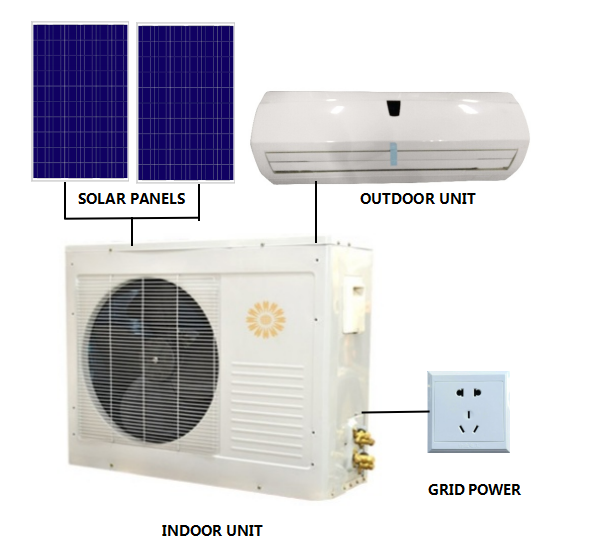

ACDC hybrid solar air conditioner is mainly composed of indoor unit, outdoor unit, charge controller and solar panels:
When there is no power supply or power supply. ACDC hybrid solar air conditioners require no batteries, and only a few PV panels to deliver huge savings.
During the day, when air conditioning is needed the most, you can operate this unit partly or up to 100% by it's independent solar panels to achieve maximum efficiency
At night, you can continue to save due to it's high efficiency.

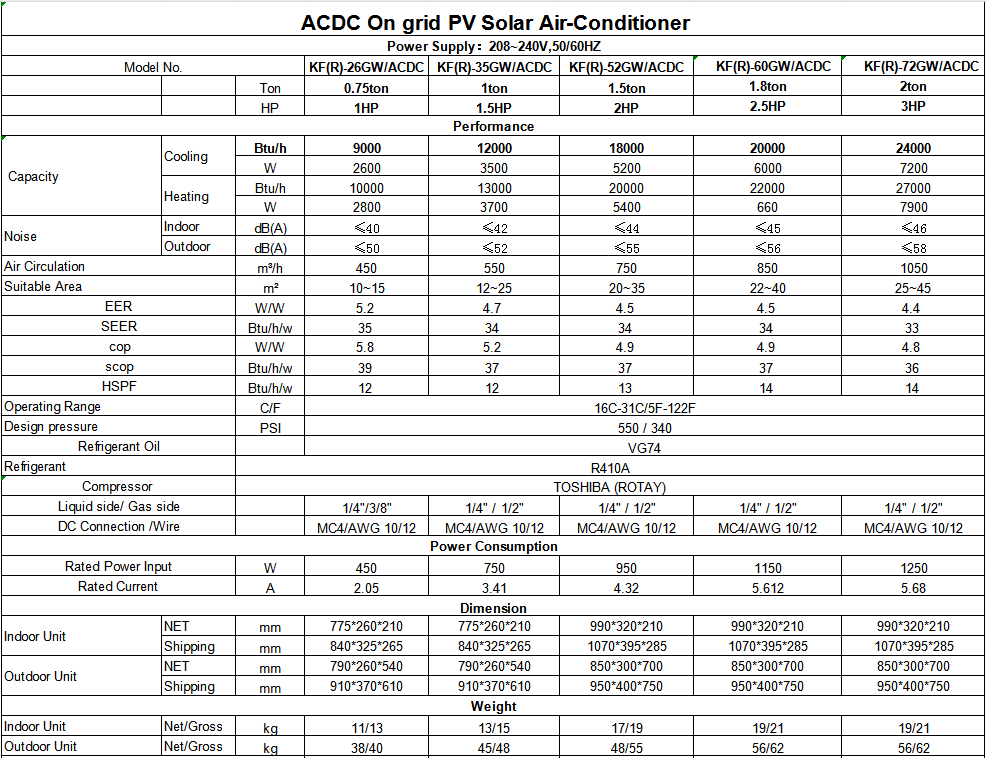

2. Equipment Specifications and Detailed
• Our DC Air Conditioners use direct DC solar power so there is no loss associated with converting DC power into AC power like standard air conditioners. |
• During the day they run solely or primarily on solar power and only use small amounts of power from the utility company as needed. When it comes to night time, they will automatically mix power and eventually switch to 240V AC power. |
• Highest conversion efficiency of 21.7% solar cells. • Anti-reflecting coating and high transmission rate glass and mechanical strength. • High quality EVA and TPT to prevent destroying and water. • Good performance of preventing from atrocious weather such as wind and hails. |
