SFM-RV4
Soflower
4"
Hot dip galvanized steel & plastic spraying coating, SUS304 stainless steel mesh
Ventilation and prevent exhaust gas backflow
8 years
| Quantity: | |
|---|---|
1. Product Description
Roof vents are installed at the end of a roof exhaust pipe or duct.Solar fan can keep fresh air in the room
The weather shield of the roof vent prevents rain and other debris from entering while directing exhaust air in one direction along the mounting surface.
Roof vents prevent exhaust air backflow and weather intrusion
The installation of roof vents can ventilate and reduce mold growth.
Roof vents consist of a weather shield, return air damper, base and bottom extension tube and protective mesh.
Roof vents with return air dampers still have up to 75% airflow. They keep indoor air flowing well.
Using high-quality galvanized steel and high-performance coating, it has strong corrosion resistance and ensures long-term use.
Four holes are reserved on the panel, which makes installation easy and firm.
Roof vents are not only suitable for bathrooms, and can also be installed in other ventilation systems such as roofs and walls.
2. Specifications
| Model | SFM-RV4 |
Color | Black |
| Material | Hot Dip Galvanized Steel |
| Dimensions | 4" |
| Weight | 2.2LB |
| Size | 11"*9.2"*6.9" |
| Product Type | Roof Cap |
| Duct Shape | Round |
| Duct Length | 2.4" |
| Height Of Weather Shield | 4.2" |
| Width Of Weather Shield | 5.3" |
| Length Of Weather Shield | 9.8" |

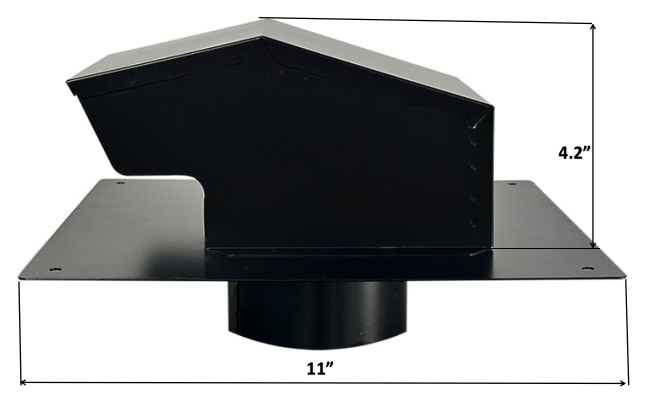

2.2 Size
3. Product installation
Roof vent is suitable for installation on roofs of various types of structures such as tile roofs, metal roofs, and wooden roofs.
4. Packaging and transportation
Packed in carton with anti-pressure foam inside. Bulk cargo transportation is packed in plywood boxes.
