40W Solar Power Gable Attic Ventilation Fan Wall Mounted With Split Monocrystalline Solar Panel Extended Cables For House

40W Solar Power Gable Attic Ventilation Fan Wall Mounted With Split Monocrystalline Solar Panel Extended Cables For House
  • SFM-F40G

  • Soflower

  • 40W

  • Metal, Metal

  • Use solar ventilation

  • 100% solar energy

  • 2 years

Availability:
Quantity:

1. Product Description

1.1 Overview

  • Solar attic fan is a ventilation device that uses solar panels to convert solar energy into electrical energy and drive the motor to operate.

  • solar roof ventilator can keep fresh air in the room.

  • Install solar roof vent on the roof, and keep ventilation to reduce mold growth in winter and temperature can be reduced in summer.

  • 100% solar energy, energy saving and environmental protection, reducing electricity bills.

    40W Solar Attic Vent Fan for House-p1.1

    1.2 Structure

  • With a split design, the fan is mounted on the wall and the panels are mounted on the roof by means of a fixing strip, which eliminates the need for holes in the roof and prevents rainwater leakage.

  • The black mono-crystalline solar panel is highly efficient in terms of photoelectricity conversion and is both aesthetically pleasing and efficient.

  • Equipped with a quick pluggable cable for quick connection between panel and fan, easy to install.

  • Equipped with an extendable cable, the fan can be installed in a variety of locations to dissipate heat and ventilation in bathrooms, kitchens, warehouses, etc. for a wider range of applications.

  • The fan is equipped with a SUS304 protective mesh to prevent birds, flying insects and leaves from getting caught in the fan, protecting the motor and fan blades.

    Hc084f8ec6c4847b08cdf62415032ecba2

    Product details please check here:

    https://youtu.be/mbtvORP01tk


2. Specifications

2.1 Specification Table

Model SFM-F40G
Wattage (watts) 40   Watt
Voltage (volts) 24   Volts
Solar   Cells  Monocrystalline   Silicon
Solar Panel Service life 25   years
Solar PV Panel Angle Not   Adjustable
Fan Blade   Material Aluminum Alloy
Air Duct 14.4 inch/IP68 Waterproof
Motor Brushless DC   Motor
Rotating Speed 1850 rpm
DC Motor Service life 30000   Hours
DC Motor Warranty 2   Years
Bracket Material Stainless   Steel
Bracket   Thickness δ2.0mm
Base / Hood Housing Material Hot   Dip Galvanized Steel
Base / Hood Housing Thickness δ1.2mm
Base / Hood Housing Warranty 5   years
Protective Net Material SUS   304
Screw Material SUS   304
Surface   Coating Polymer   Epoxy Resin Powder Coating
Coating Color Black, OEM
Ventilation 3468CMH   / 2040CFM
Working Noise 45   dB
Host size 558*558*152mm   (22*22*6 inch)
Package size 575*575*180mm   (22.5*22.5*7inch)
Weight/Volume 9.5KG / 0.047CBM   (21.0lb / 0.06ft⊃3;)
Container load 500PCS   / 20GP
1166PCS / 40HQ

2.2 Size

SFM-F40



2.3 Optional accessories

40W Solar Attic Vent Fan for House-p2.3

Adapter

Special custom style, can convert AC to DC, power the fan on rainy days or at night, and the fan works normally.

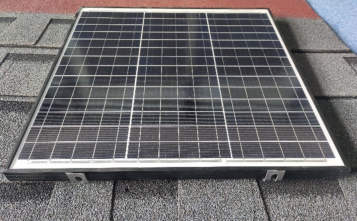

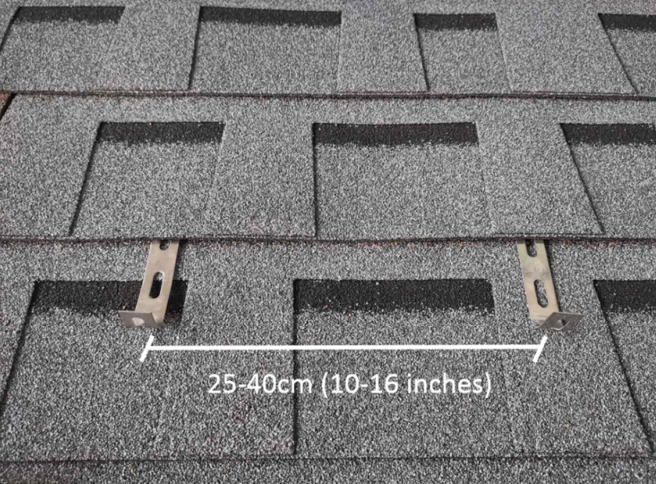

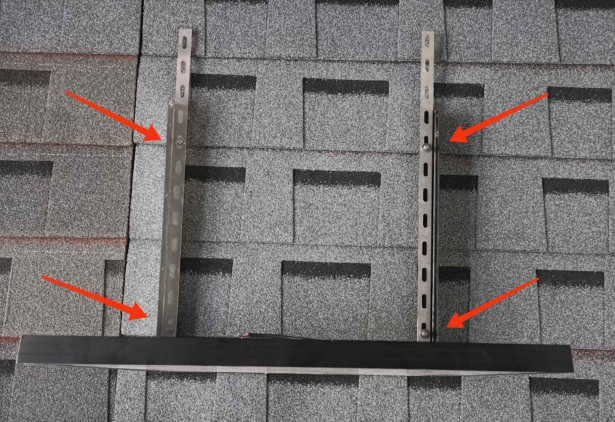

3. Product installation

Solar attic fan is suitable for installation on roofs of various types of structures such as tile roofs, metal roofs, and wooden roofs.

lALPJt8m1RPb1mTNAeTNApA_656_484

lALPJu1cz6b3PIbM3c0BZQ_357_221

lALPJvgFS5VJVmPNAabNAmc_615_422
lALPJu1cz6b3PIbM3c0BZQ_357_221

4. Packaging and transportation

Solar attic fan is packed in carton with anti-pressure foam inside. Bulk cargo transportation is packed in plywood boxes.

40W Solar Attic Vent Fan for House-p4
